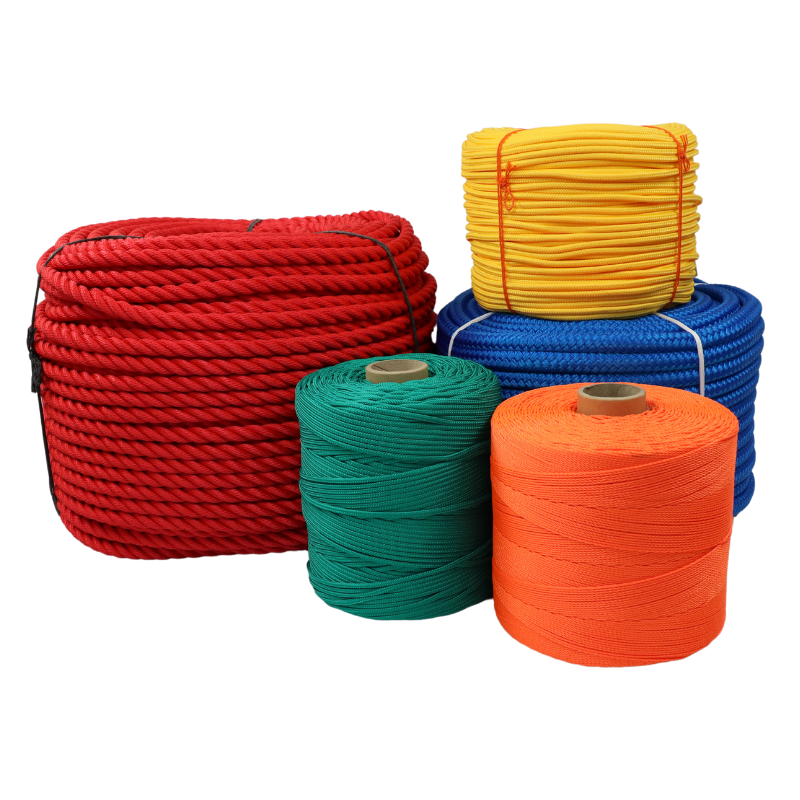

POLYPROPYLEN MULTIFILAMENT

POLYPROPYLEN MULTIFILAMENT

Merkmale:

hergestellt aus hochwertiger Polypropylenseide
UV-stabilisiert
beständig gegen chemische und organische Stoffe
schwimmend
leicht und flexibel

Anwendung:

Industrie
Seeschiffahrt, Segeln
Haushalt
Touristik- und Sportausrüstung
Konfektion und Accessoires
Bauwesen
Automobilbereich

Hergestellt gemäß den Betriebsbedingungen.

Ø 1,6 - 80 mm

ANFRAGE SENDEN

**Spezifikation der Formen: A, B*, L**

* Durchmesserbereich für Seile der Form B: 6-16 mm

UNGEFÄHRER DURCHMESSER [mm]		REISSKRAFT [daN]		GEWICHT [g/m]		GEWICHTSTOLERANZ [%]
A, B*	L	A, B	L	A, B	L	A, B, L
1,6	-	43	-	1,5	-	+/- 10
2	-	62	-	1,9	-	+/- 10
3	-	95	-	4,5	-	+/- 10
4	-	210	-	8	-	+/- 10
5	-	335	-	13	-	+/- 10
6	-	440	-	17	-	+/- 10
8	8	770	770	30	30	+/- 10
10	10	1 150	1 150	45	45	+/- 10
12	12	1 660	1 660	65	65	+/- 10
14	14	2 300	2 300	90	90	+/- 10
16	16	2 900	2 900	115	115	+/- 10
18	18	3 700	3 700	148	148	+/- 10
20	20	4 513	4 513	180	180	+/- 10
22	22	5 361	5 361	220	220	+/- 10
24	24	6 336	6 336	260	260	+/- 10
26	26	7 428	7 428	305	305	+/- 10
28	28	8 646	8 646	355	355	+/- 10
30	30	9 873	9 873	405	405	+/- 10
32	32	11 209	11 209	460	460	+/- 10
36	36	14 251	14 251	585	585	+/- 10
40	40	17 545	17 545	720	720	+/- 10
44	44	21 443	21 443	880	880	+/- 10
48	48	25 342	25 342	1040	1040	+/- 10

Spezifikation der Formen: E, K, H

UNGEFÄHRER DURCHMESSER [mm]	REISSKRAFT [daN]							GEWICHT [g/m]							GEWICHTSTOLERANZ [%]
	E-8	E-16	K-8	K-16	K-24	K-32	H-12/20	E-8	E-16	K-8	K-16	K-24	K-32	H-12/20
1,5	34	-	-	-	-	-	-	1	-	-	-	-	-	-	+/- 10
2	51	51	51	51	-	-	-	1,9	1,9	2,2	2,2	-	-	-	+/- 10
2,5	75	75	77	77	-	-	-	3	3	3,3	3,3	-	-	-	+/- 10
3	111	111	111	111	-	-	-	4,9	4,9	4,3	4,3	-	-	-	+/- 10
3,5	150	150	150	150	-	-	-	5,8	5,8	5,8	5,8	-	-	-	+/- 10
4	187	187	187	187	-	-	-	8	8	7,7	7,7	-	-	-	+/- 10
5	272	272	272	272	-	-	-	12	12	12	12	-	-	-	+/- 10
6	459	459	459	459	-	500	323	17	17	17,5	17,5	-	19,5	17,5	+/- 10
8	638	638	638	638	638	750	468	26	26	27	27	30	35	28	+/- 10
10	689	689	689	689	765	1 000	646	38	38	38	38	48	50	42	+/- 10
12	1 020	1 020	1 190	1 190	1 190	1 300	850	60	60	56	56	61	67	60	+/- 10
14	1 200	1 200	1 785	1 785	-	1 800	1 105	79	79	79	79	-	85	76	+/- 10
16	1 600	1 600	2 338	2 338	-	-	-	106	106	102	102	-	-	-	+/- 10
18	2 000	2 000	2 975	2 975	-	-	-	132	132	140	140	-	-	-	+/- 10
20	-	-	3 485	3 485	-	-	-	-	-	157	157	-	-	-	+/- 10
